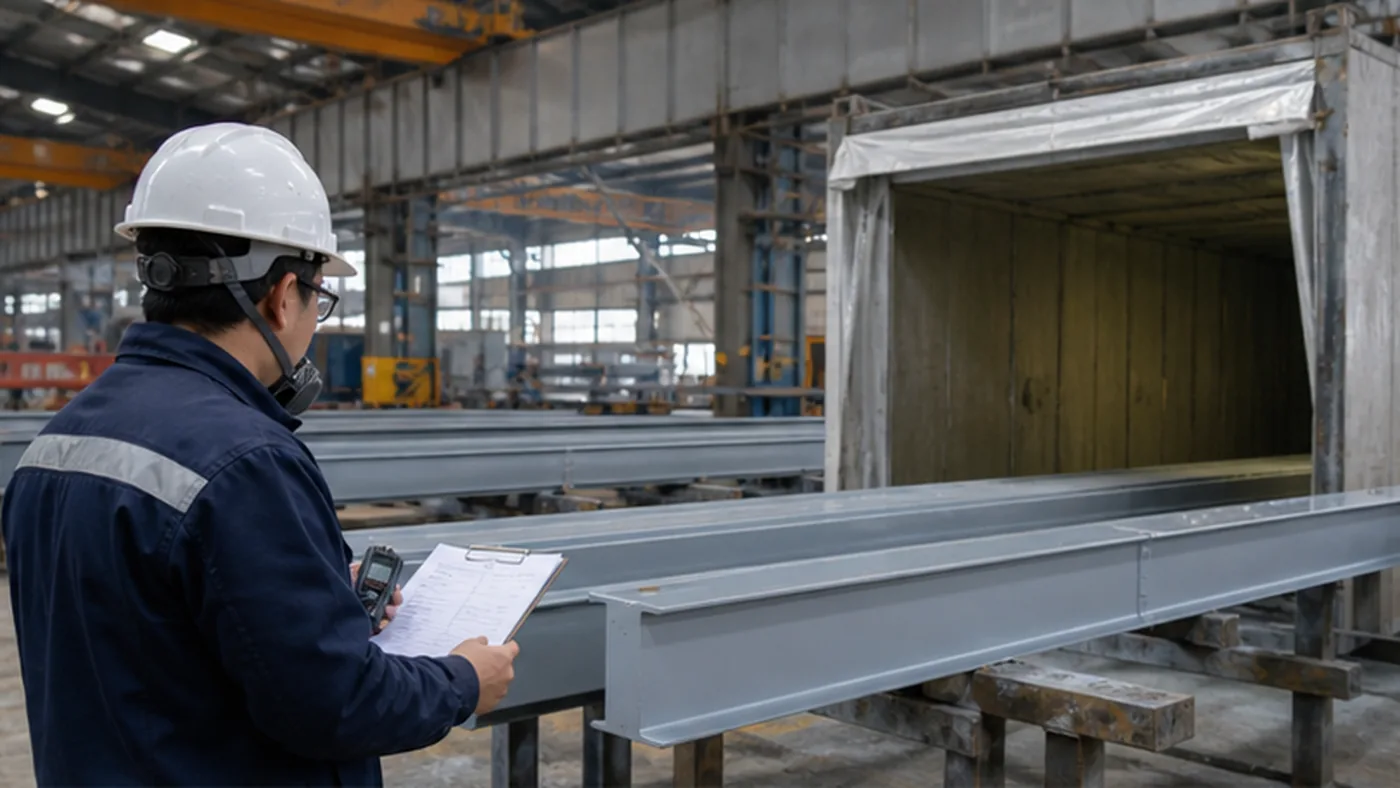

Steel structure coating line audit checklist

A steel structure coating line audit checklist helps EPC buyers confirm that the fabricator can protect steel components consistently, not only apply paint before shipment. Coating quality depends on surface preparation, environmental control, paint mixing, dry film thickness, curing time, handling, records, and repair control.

This checklist is useful during pre-award factory audits, remote supplier reviews, and quality planning for industrial buildings, logistics warehouses, workshops, pipe racks, platforms, and export steel packages where coating failure can create site delays and long-term corrosion risk.

1. Confirm surface preparation capability

The coating result starts before paint is applied. Buyers should check whether blasting or mechanical cleaning equipment can reach the specified surface preparation grade for the member size and production volume.

2. Review paint storage and mixing control

Paint materials should be stored and mixed under controlled conditions. Expired, poorly stored, or incorrectly mixed paint can pass a visual inspection but fail later.

• Paint batch number, shelf life, material safety data sheet, and technical data sheet availability.
• Storage area temperature, ventilation, fire control, and separation from welding or cutting operations.
• Mixing ratio, induction time, pot life, thinning limit, and batch tracking.
• Control of primers, intermediate coats, topcoats, zinc-rich paints, and special systems.
• Clear identification of paint used for each project, color, component group, and coating layer.

3. Check application conditions

Application conditions should be measured, not guessed. Buyers should review whether the factory records temperature, relative humidity, steel surface temperature, dew point, ventilation, and dust conditions before and during coating work.

4. Verify DFT inspection and records

Dry film thickness, or DFT, should be checked by trained inspectors using suitable gauges. The audit should confirm whether the factory has calibrated gauges, clear measurement points, acceptance criteria, and traceable records.

• Gauge calibration records and daily verification checks.
• DFT measurement frequency by member type, surface area, and coating layer.
• Recording format that links readings to piece marks or batch numbers.
• Procedure for low DFT, high DFT, missed areas, runs, sags, pinholes, and coating damage.
• Final coating report format for buyer or third-party review.

For document planning, compare coating records with the steel structure quality documents checklist.

5. Review coating hold points

Coating hold points should be clear before production starts. EPC buyers should ask whether inspection is required after surface preparation, after primer, after intermediate coat, after topcoat, and before packing release. When a third-party inspector or owner representative is involved, the factory should know which steps require notification and which steps may proceed after internal inspection.

The audit should also check how rejected coating work is controlled. A useful process will separate accepted components from items waiting for repair, record the reason for repair, confirm the repair method, and keep final inspection evidence before the piece is released to packing. This matters when similar pieces are stacked together and the site later needs traceable evidence for a specific piece mark.

6. Audit drying, handling, and repair areas

A coating line can fail after painting if components are moved too early or stored poorly. Buyers should check whether painted steel has enough drying and curing time before lifting, stacking, packing, or outdoor storage.

• Drying area capacity compared with daily painting volume.
• Protection from rain, dust, overspray, direct contamination, and ground contact.
• Use of soft slings, timber supports, spacers, and protected stacking methods.
• Touch-up procedure for lifting damage, transport damage, missed edges, and site-repair items.
• Repair inspection records before shipment release.

7. Match coating capacity to the delivery schedule

Coating capacity should be compared with fabrication output and shipment sequence. If painting is the bottleneck, fabricated components may wait outdoors, finished pieces may be rushed, or records may lag behind shipment planning.

During the audit, ask the factory to show recent production records, painting output, drying area capacity, inspection reports, and shipment release records. The goal is to confirm whether the coating line can support the project schedule without hiding rework or skipping inspection steps.

For broader factory capability review, use the steel structure production capacity checklist and the welding equipment audit checklist.

Buyer note

A coating line audit should focus on evidence, not only the appearance of painted components. The strongest audit evidence shows controlled surface preparation, correct paint handling, measured application conditions, traceable DFT records, repair control, and enough drying capacity to support the delivery plan.

Buyer follow-up questions

How should buyers use this page?

Use it as a practical review aid for steel structure coating line audit checklist. The page helps the buyer confirm what must be checked, what evidence should be requested, and which follow-up actions should be closed before the package moves to the next procurement step.

When should this review happen?

Use it before awarding a large package or when the buyer needs evidence that the fabricator can actually deliver the promised scope and schedule.

What evidence should be kept?

Keep the records that prove the decision, especially workshop flow, monthly output evidence, equipment checks, welding and coating controls, inspection records, and subcontracted work limits. Photos, comments, approvals, open issues, and closeout notes should stay linked to the relevant drawing, supplier reply, shipment, or handover record.
