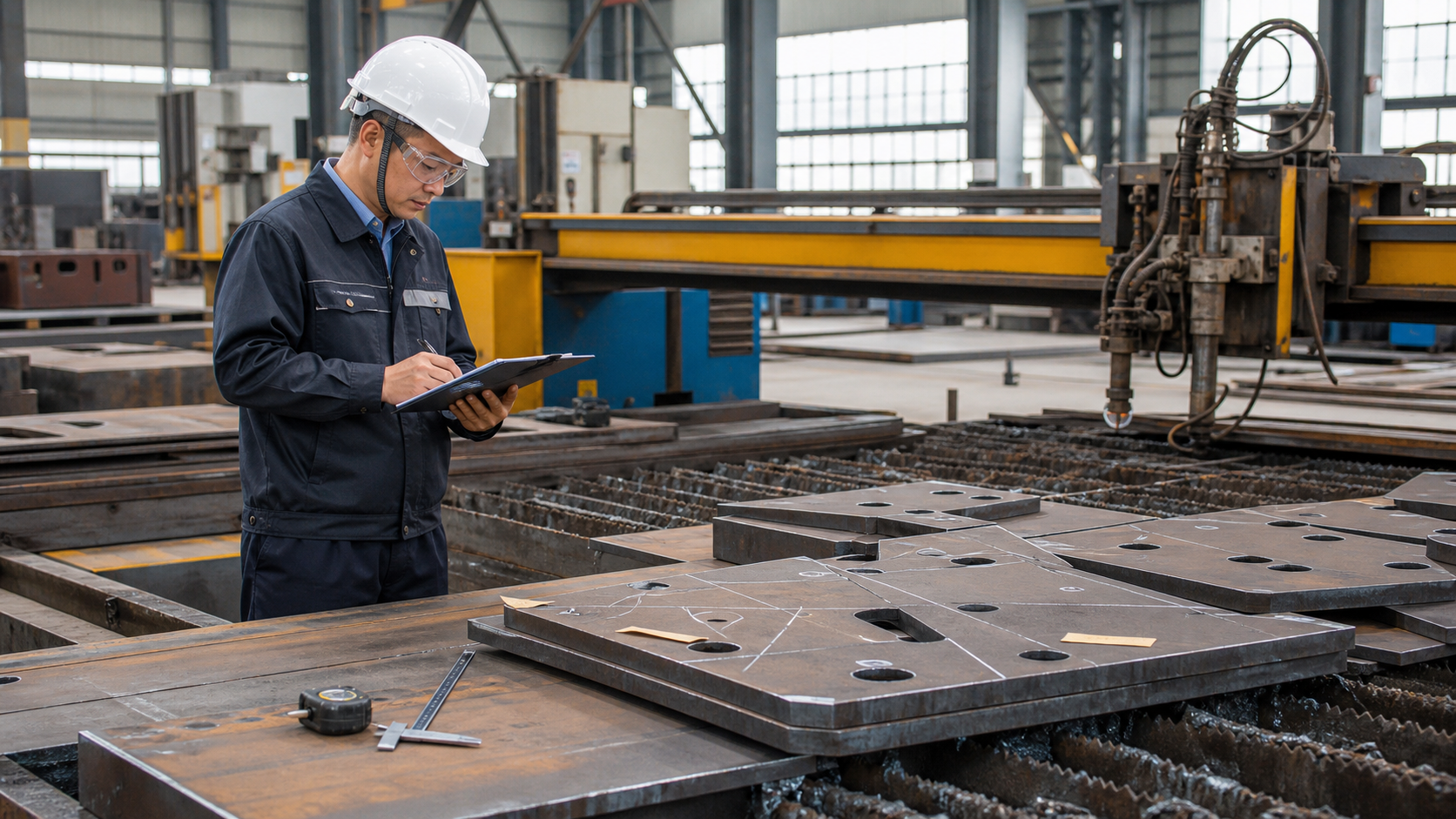

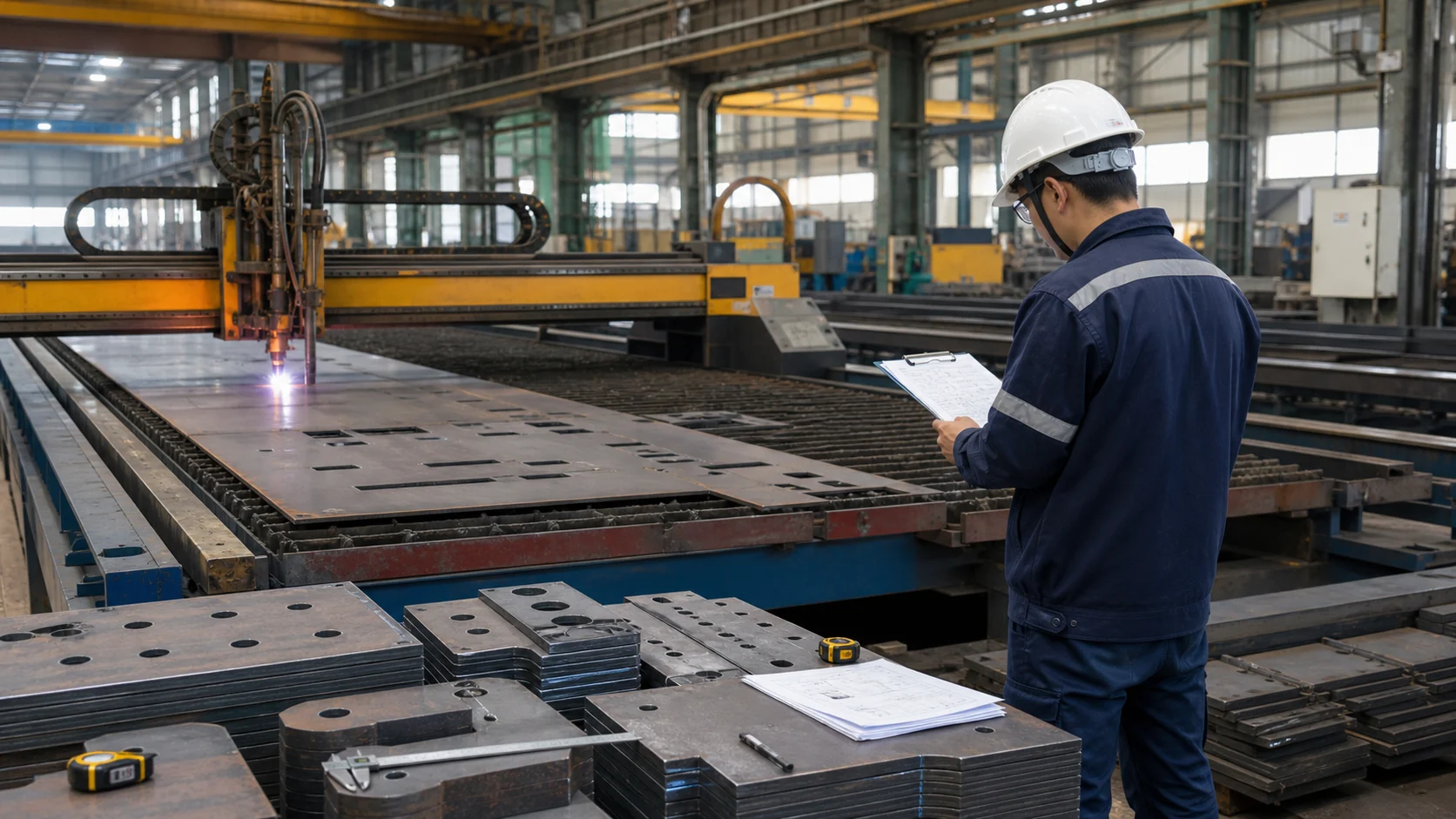

A steel structure material cutting line audit checklist helps EPC buyers verify whether a fabricator can cut plates, sections, tubes, stiffeners, gussets, and connection parts accurately while keeping material traceability intact. Cutting is one of the first production steps, so mistakes here can create weld fit-up problems, wrong part quantities, lost heat numbers, and schedule delays.
This checklist is intended for pre-award factory audits, remote supplier reviews, and production-readiness checks before a large steel structure package is released. It does not replace project inspection requirements, but it gives buyers a practical way to ask for evidence.
Quick answer
A steel structure material cutting line audit checklist should confirm that the fabricator can cut the actual project material range with the right machine capacity, the latest drawing revision, controlled nesting files, verified dimensions, readable part marks, and transferred heat numbers before parts move to assembly. EPC buyers should ask for first-piece inspection records, cut-part release control, scrap and remnant segregation, and evidence that cut items stay connected to material certificates and later welding records. The goal is not just to see a cutting machine in operation, but to prove that cutting output is accurate, traceable, and ready for the next fabrication step without hidden rework risk.
1. Confirm cutting equipment and size capacity
The audit should confirm whether the available equipment matches the project material range. A factory may have several cutting machines, but the useful question is whether those machines can process the actual plate thickness, section size, hole pattern, bevel requirement, and delivery volume.
| Equipment area | Buyer review question |
|---|---|
| CNC plate cutting | Can the machine cut required plate thickness, bevels, slots, gussets, base plates, and stiffeners? |
| Sawing or section cutting | Can beams, channels, angles, tubes, and columns be cut to required length and tolerance? |
| Drilling or punching | Are hole diameter, spacing, edge distance, and bolt-group accuracy controlled? |
| Lifting and handling | Can raw material and cut parts be moved without mix-up, damage, or unsafe stacking? |
Compare equipment capacity with the steel structure production capacity checklist so the buyer can see whether cutting is a project bottleneck.
2. Check drawing revision and nesting control
Cutting should only start from the correct drawing revision. EPC buyers should ask how the fabricator prevents old drawings, superseded part lists, or unapproved nesting files from reaching the shop floor.
- The cutting list references the latest approved drawing revision or released-for-fabrication status.
- Nesting files are checked against member marks, quantities, thickness, material grade, and project phase.
- Hold items, late design changes, and missing information are separated from released cutting work.
- The operator can identify which drawing, part list, or work order controls the cutting job.
- Revised parts are controlled so old and new versions are not mixed in assembly.
If the factory cannot show revision control at the cutting line, the buyer should treat this as a production-risk item, not only a document issue.
3. Review material identity and heat number transfer
After raw material is cut, original mill marks may disappear. The audit should confirm how material grade, heat number, plate number, or batch identity is transferred to cut parts and later to welded components.
| Traceability point | Evidence to request |
|---|---|
| Material receiving record | Links mill certificate, heat number, grade, size, and quantity to accepted stock. |
| Cutting work order | Identifies which accepted material batch is released for the cutting job. |
| Part marking | Shows part number, mark, heat number reference, or project traceability code where required. |
| Scrap and remnant control | Prevents leftover material from being reused without grade and heat number identity. |
For a deeper traceability review, use the material traceability guide and the mill test certificate review checklist.
4. Verify dimensional inspection after cutting
Cutting accuracy affects fit-up, welding quality, bolt-hole alignment, and erection efficiency. Buyers should ask whether the factory performs first-piece inspection, random inspection, or full inspection for key parts before they move to assembly.
- Length, width, bevel angle, edge condition, slot size, and hole position are checked against the drawing.
- First-piece inspection is completed before repeated cutting of similar parts.
- Measurement tools are suitable and calibrated where required by the quality plan.
- Rejected parts are marked, separated, recut, repaired, or formally accepted before assembly.
- Inspection results are linked to part marks or cutting work orders.
A short dimensional issue in cutting can become a larger assembly and welding delay. The audit should therefore check both the inspection method and the correction process.
5. Audit edge preparation, holes, and fit-up readiness
The cutting line should deliver parts that are ready for assembly, not only separated from raw material. Buyers should review how the factory controls bevels, hole quality, burr removal, surface cleaning, temporary markings, and part grouping before welding or drilling continues.
| Item | Audit focus |
|---|---|
| Bevel preparation | Bevel angle, root face, surface condition, and match with approved weld detail. |
| Hole quality | Diameter, roundness, burr control, spacing, edge distance, and drilling sequence. |
| Edge condition | Removal of slag, notches, cracks, sharp edges, and excessive roughness. |
| Part grouping | Cut parts are grouped by member mark, assembly sequence, project zone, or batch. |
6. Check handover from cutting to assembly
The transfer from cutting to assembly is a common place for mix-ups. The audit should confirm whether cut parts are clearly marked, bundled, staged, and released with enough information for fitters and welders.
- Cut parts are not moved to assembly before required inspection is complete.
- Part marks are readable after handling, shot blasting, or temporary storage.
- Bundles or pallets are separated by project, member group, or assembly area.
- Nonconforming parts are not mixed with released parts.
- Missing parts, wrong quantities, and drawing questions are reported before assembly starts.
For connected process review, compare this checklist with the welding equipment audit checklist and the coating line audit checklist.
7. Identify warning signs during the audit
Some warning signs are easy to see during a factory visit. They do not always mean the fabricator is unsuitable, but they require follow-up before award or before the buyer releases large quantities of material for cutting.
| Warning sign | Follow-up question |
|---|---|
| Cut parts without readable marks | How will the factory prevent assembly mix-ups and lost traceability? |
| Old drawing revisions near the machine | Who controls released cutting files and removes superseded versions? |
| Mixed remnants without grade identity | How are leftover plates or sections reused without losing heat number control? |
| No first-piece inspection record | How does the factory catch repeated cutting errors before batch production? |
Frequently asked questions
What should EPC buyers check during a steel structure cutting line audit?
Buyers should check equipment capacity, drawing revision control, nesting records, cutting accuracy, hole and edge preparation, heat number transfer, part marking, inspection records, and how cut parts are released to assembly.
Why is heat number transfer important during material cutting?
After plates and sections are cut, original material marks may disappear. Heat number transfer keeps cut parts connected to mill certificates, receiving records, and final component traceability.
When should cutting records be reviewed?
Cutting records should be reviewed during supplier audit, before major fabrication release, after drawing revisions, during material traceability review, and before final quality document handover.
