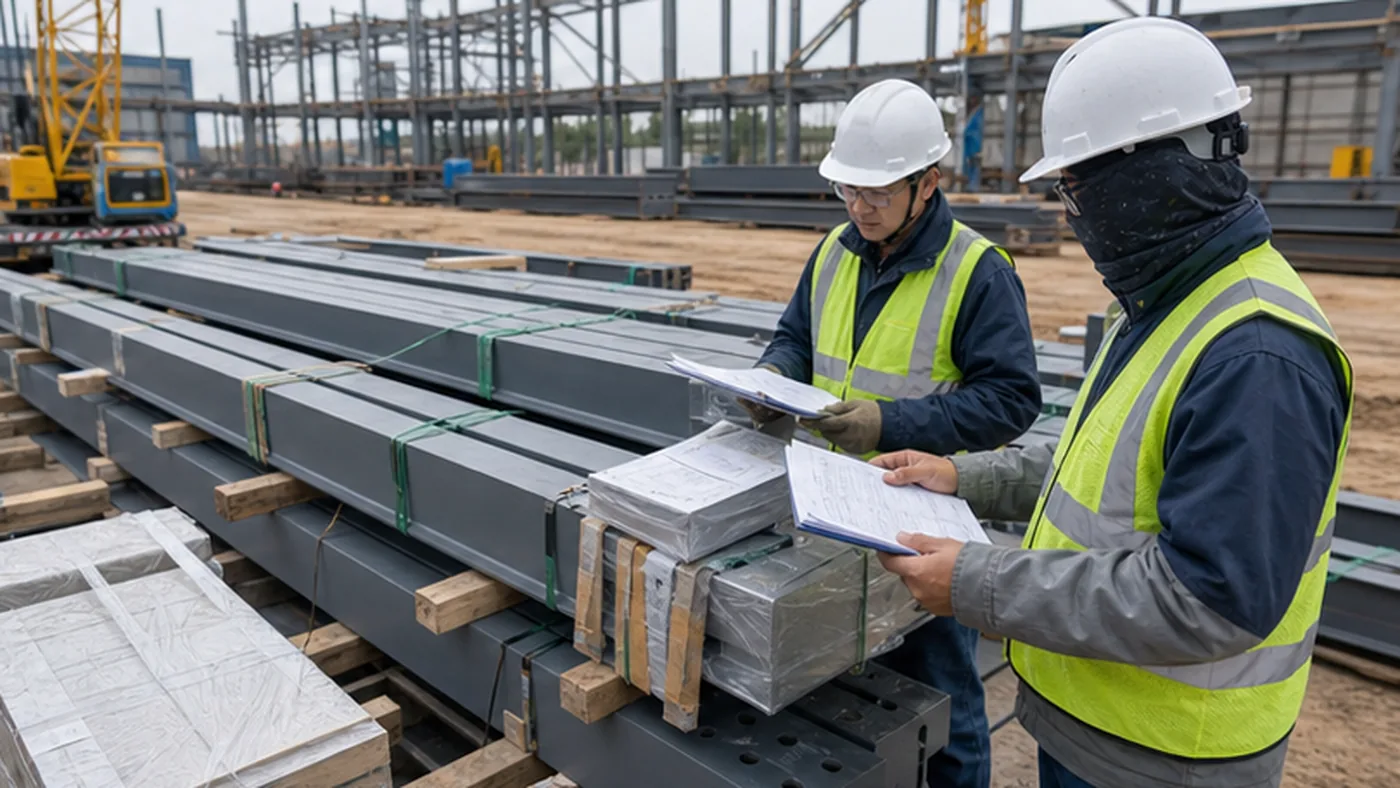

A steel structure installation package checklist for EPC site teams helps connect procurement, fabrication, export delivery, receiving, and erection. Site teams often lose time not because the steel members are missing, but because the installation information is scattered across drawings, packing lists, quality files, bolt records, and shipment photos.
This checklist is written for project buyers and site engineers preparing a clear handover package before steel erection starts. It is not a construction method statement. It is a document and evidence checklist that helps the site team identify what arrived, where it belongs, and what still needs clarification.
1. Start with the latest approved drawings
The installation package should only include drawings that are approved for construction or clearly marked for the current site activity. Mixed revisions create real installation risk, especially when fabrication drawings, erection drawings, anchor bolt drawings, and marking lists are not aligned.
- Latest erection drawings with revision number and approval status.
- General arrangement drawings, grid references, elevations, and bay numbering.
- Fabrication or shop drawing references where component marks are defined.
- Anchor bolt layout and base plate details where relevant.
- Any revision notes that affect member length, hole position, connection type, or erection sequence.
2. Include a component marking and packing cross-reference
The site team needs a simple way to connect drawings, piece marks, package numbers, and laydown areas. A useful installation package should include a cross-reference table, not only a pile of separate files.
| Reference | What it should connect |
|---|---|
| Component mark | Drawing mark, physical member mark, and erection location. |
| Package number | Bundle, crate, pallet, or box where the item was shipped. |
| Installation area | Grid line, bay, floor, phase, building zone, or erection sequence. |
| Shipment batch | Container, truck, or delivery batch that brought the components to site. |
For member identification, use the component marking guide and the site receiving checklist.
3. Add bolt, nut, washer, and accessory records
Installation delays often begin with missing or mixed small parts. The installation package should clearly show which bolts, nuts, washers, clips, shims, anchor bolt templates, touch-up materials, and loose accessories belong to each erection area.
- Bolt list by size, grade, quantity, coating, and connection area.
- Small-parts package list with box numbers and package labels.
- Accessory list for clips, gusset plates, splice plates, brackets, and special loose items.
- Spare parts or overage quantity, if supplied.
- Storage requirements for bolts, galvanized items, or coated accessories.
Before issuing small parts to erection crews, compare the site files with the bolt and small parts packing checklist.
4. Attach receiving and shortage records
The installation package should show whether each shipment batch was received completely. Open shortages, damaged packages, unreadable marks, or unresolved receiving discrepancies should be visible before erection teams plan their sequence.
| Receiving record | Site use |
|---|---|
| Receiving checklist | Confirms package count, condition, and first inspection at arrival. |
| Shortage report | Shows missing components, bolts, or accessories by package reference. |
| Damage report | Records transport damage, coating damage, bent members, or broken boxes. |
| Photo log | Connects actual received condition to package numbers and shipment records. |
5. Include closed quality and NCR records
Site teams should know whether components are released for installation or still under quality hold. The installation package does not need every factory record, but it should include a clear release status and references to key quality documents.
- Final inspection release or shipment release record.
- Closed NCR list and concession approvals, if any.
- Coating, galvanizing, or touch-up records for items requiring site attention.
- Material or welding document references when required by the project quality plan.
- Open hold list for components that should not be installed yet.
For quality closeout, use the nonconformance report checklist and the pre-shipment inspection document checklist.
6. Prepare a site issue log
The installation package should include a simple issue log format so site teams can report problems consistently. This avoids scattered messages, missing photos, and unclear responsibility when problems appear during unloading, sorting, or erection.
| Issue log field | Why it matters |
|---|---|
| Component or package number | Identifies the exact item affected. |
| Issue type | Separates shortage, damage, wrong mark, drawing conflict, or quality hold. |
| Photo evidence | Allows procurement or supplier teams to understand the issue remotely. |
| Required action | Defines replacement, repair, clarification, drawing update, or site workaround request. |
7. Organize files for site use
A strong package is easy to use under site pressure. File names should be clear, revisions should be visible, and the document structure should match how site teams work.
- Separate folders for drawings, packing lists, quality records, receiving records, and issue logs.
- Use file names that include revision, shipment batch, and package reference where practical.
- Keep one index file at the top of the package showing document status.
- Mark superseded drawings or obsolete records clearly instead of leaving them mixed with current files.
- Provide a printable receiving and installation document index for site handover meetings.
8. Hold a handover review before erection starts
Before installation starts, procurement, quality, logistics, and site teams should review the package together. The goal is to identify missing documents, open shortages, unclear marks, and unresolved quality issues before cranes and crews are waiting.
- Confirm all expected packages have been received or identify missing shipments.
- Confirm component marks can be traced to drawings and laydown areas.
- Confirm bolts and accessories are available for the first erection sequence.
- Confirm no open NCR or quality hold blocks planned installation.
- Confirm the site issue reporting path and document owner.
Red flags for EPC site teams
- Installation starts while drawings and marking lists use different revisions.
- Bolts are issued to crews without package-level quantity checks.
- Open shortages are not connected to the erection sequence.
- Quality holds or NCR concessions are not visible to the site team.
- Photos and receiving records are stored separately from the installation package.
- The package has no owner responsible for updates after shipment arrivals.
Buyer note
An installation package is not just an archive of documents. It is a working control file that helps EPC site teams install steel in the right sequence, with the right parts, using the right revision, and with fewer disputes between procurement, supplier, and site teams.
