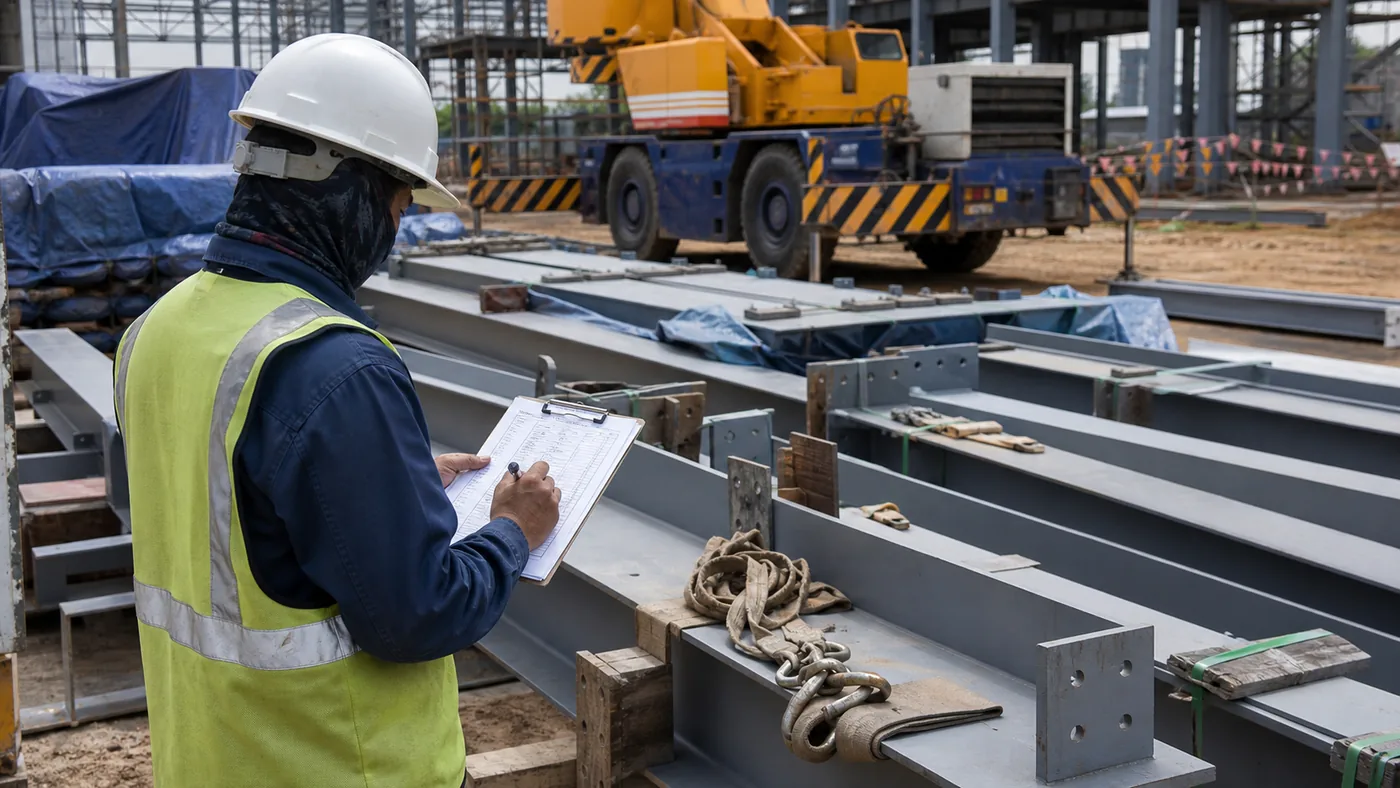

Steel structure pre erection document checklist

A steel structure pre erection document checklist helps EPC teams confirm that the site has the right records before installation begins. A steel package may be physically delivered, but erection can still be delayed if drawings are outdated, mark lists do not match packages, bolt records are unclear, quality files are missing, or open delivery issues have not been closed.

This checklist is intended for EPC buyers, document controllers, logistics teams, site receivers, and installation supervisors. It focuses on procurement and delivery handover documents before erection, not on general construction safety paperwork.

1. Define the erection document scope

The document review should match a specific erection area or sequence. Avoid approving a generic file package if the first installation area still lacks drawings, bolt lists, or release records.

• Project area, building zone, gridline range, or erection sequence.
• Shipment batch, package number range, and component mark range.
• Document cut-off date and latest revision baseline.
• Receiver of the document package and responsible document controller.
• Open issues or exclusions that remain outside the document handover.

For the broader readiness process, review the installation readiness issue checklist.

2. Check erection drawings and shop drawings

Drawings are the core of the pre erection document package. The site team needs the latest approved drawings, and older versions should be removed or clearly marked as obsolete.

For revision control, use the fabrication drawing revision control checklist.

3. Verify mark lists and packing lists

The installation team should be able to connect drawings, component marks, packing lists, and actual packages. If this connection is weak, site sorting becomes slow and missing parts reports become difficult to verify.

• Mark list revision matches the erection drawings used by the site team.
• Packing list shows package numbers, component marks, quantities, weights, and shipment batch.
• Package labels and component marks are consistent with the document package.
• Missing or damaged package notes are attached to the relevant mark list items.
• Transferred package items are clearly identified if they belong to a later erection sequence.

For component identification, review how steel structure components are marked for site installation.

4. Include bolt and anchor bolt records

Bolts and anchor bolts should not be treated as minor accessories in the document package. The site team needs records that identify bolt size, grade, quantity, package number, and related installation area.

For small-part records, use the bolt and small parts packing checklist and the anchor bolt delivery checklist.

5. Review quality and inspection documents

Quality documents should be included when they are required for installation release, client inspection, or final turnover. The document package should show which files are included and which remain pending.

• Material certificates and heat number traceability where required.
• Welding inspection records, NDT reports, and repair records if applicable.
• Coating or galvanizing inspection records, including DFT or coating thickness records where required.
• Nonconformance reports and closeout evidence before release.
• Inspection release notes or shipment release records.

For quality document coverage, use the steel structure quality documents guide.

6. Attach shipment and receiving evidence

Shipment and receiving records help the installation team understand what arrived, where it was stored, and whether delivery issues are still open. These records should be connected to package numbers and component marks.

• Shipment photo records showing package labels, loading sequence, and container or truck reference.
• Receiving photos showing package condition, labels, and unloading evidence.
• Damage photos and damage report references.
• Missing parts reports and replacement receiving evidence.
• Storage condition photos for components that waited before erection.

For photo evidence, use the shipment photo record checklist and the site receiving checklist.

7. Confirm open issue and closeout records

The pre erection document package should include the status of open issues affecting the installation area. Closed issues should have evidence, and transferred issues should have an owner and due date.

For issue status control, use the open issue closeout checklist.

8. Final pre erection document index

The final package should include a simple index so the site team can confirm which documents are active, which are pending, and which are excluded from the erection release.

• Document title, revision, date, and owner.
• Related package number, component range, or erection area.
• Status: issued, pending, superseded, excluded, or transferred.
• File location or evidence folder link.
• Receiver confirmation and date.
• Notes for limitations that affect installation release.

Red flags before erection

• The site has erection drawings but no mark list or packing list connection.
• Old drawing revisions remain in the active site package.
• Bolt records are missing package numbers or erection area references.
• Quality documents are marked complete without NCR closeout evidence.
• Missing parts are listed as closed before replacement is received at site.
• Open issues are transferred to installation without owner, due date, or limitation.

Buyer note

A pre erection document checklist should make installation release traceable. EPC buyers should check that drawings, marks, packing records, quality files, shipment evidence, and issue closeout records all point to the same erection area before the site team starts work.

Buyer follow-up questions

How should buyers use this page?

Use it as a practical review aid for steel structure pre erection document checklist. The page helps the buyer confirm what must be checked, what evidence should be requested, and which follow-up actions should be closed before the package moves to the next procurement step.

When should this review happen?

Use it before packing is closed, before shipment release, and when site teams need clear receiving or handover evidence.

What evidence should be kept?

Keep the records that prove the decision, especially component marks, bundle labels, bolt boxes, packing lists, loading photos, shipping documents, receiving records, and closeout notes. Photos, comments, approvals, open issues, and closeout notes should stay linked to the relevant drawing, supplier reply, shipment, or handover record.
